ikbc Poker II

Compact Design
The Poker II is a true 60% mechanical keyboard with real-time macro programming. iKBC removed all the non-essential keys and shifted their functionality to another layer within the keyboard. The result is a compact, aesthetically pleasing and highly functional keyboard.
The Poker II is available in both slim and low profiles.


No Sacrifice
Even though the Poker II is 40% smaller than a normal keyboard, nothing has been sacrificed in the shrinking process. The extra keys like arrow keys and the function row are accessible on a secondary function layer. Hold down the Fn key and “3” becomes "F3", hold down Fn key and “A” becomes “left arrow” etc.

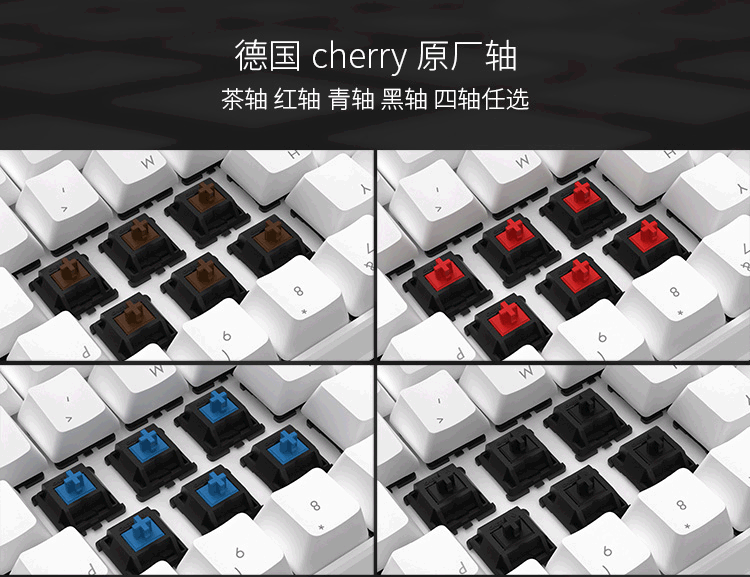

Cherry MX Switches
For a unique and enjoyable typing experience iKBC has equipped the new Poker II with Cherry MX Switches, available in Red, Black, Brown and Blue.

Customization
This keyboard is fully programmable via hardware so no software is needed, just plug it in and start building macros. Since all of the programming happens on the keyboard, you can plug it into any computer and take your custom layouts wherever you go, all settings are saved on the onboard memory.

Here an example of customization:
If you want to program A as 123 starts by entering the programming mode by pressing FN + Right CTRL then the A key, then 1,2,3 and finish by pressing PN. At this point you can continue to program macros or end the programming mode, if you wish to continue programming, for example set FN + A to register 456, press FN + A then 4,5,6 and finish by pressing PN. If you want to exit the programming mode simply press FN + Right CTRL.

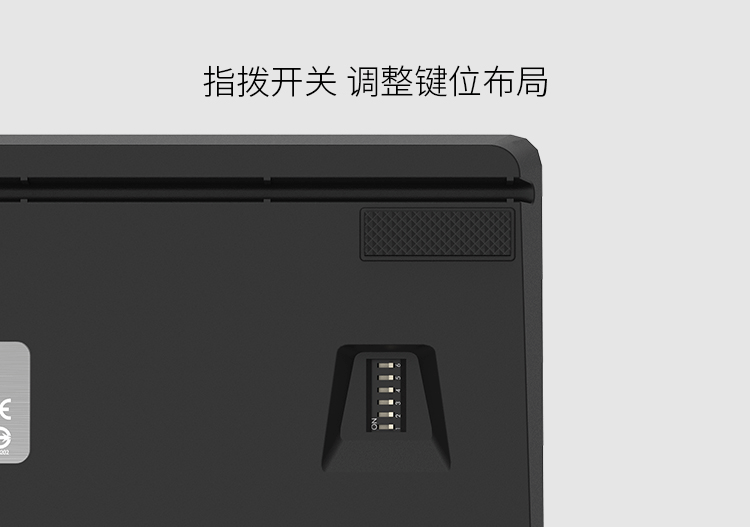

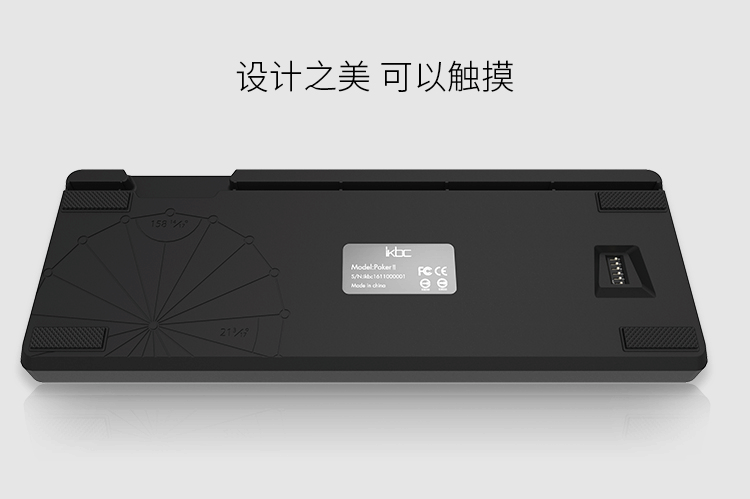

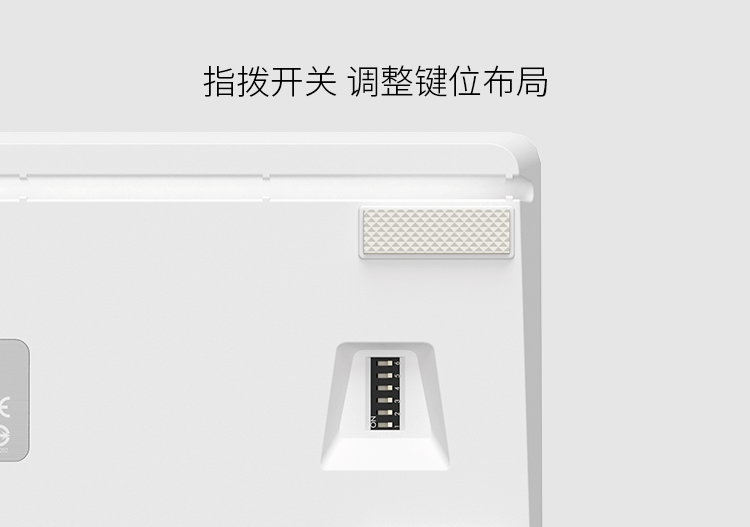

In addition to all the programming, there are 6 DIP switches on the back.

The DIP switches number 1 & 2 allow you to switch between the different layouts (Qwerty, Dvorak, Colemak & Workman).
The DIP switch number 3 allows you to change Fn & Pn positions.
The DIP switch number 4 turns on the arrow keys on left Shift / Fn / Pn / Ctrl.
The DIP switch number 5 switches Capslock / left Ctrl.
The DIP switch number 6 switches Win / Alt.

Features

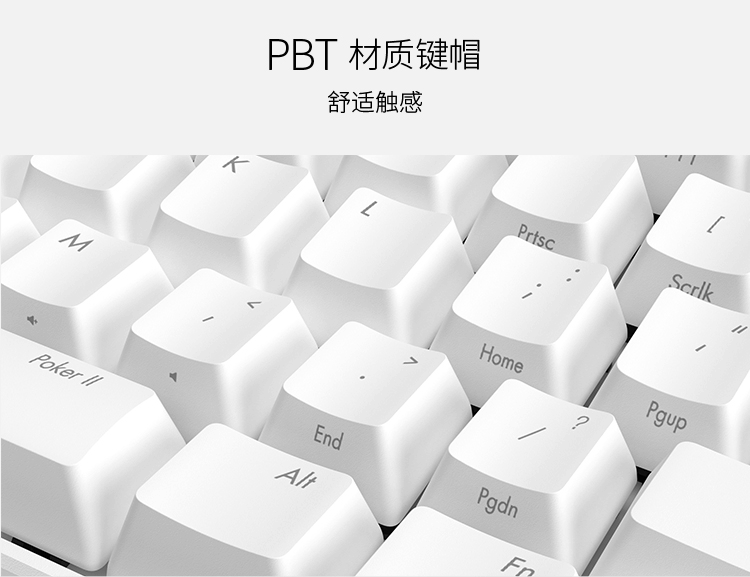

1. PBT Keycaps

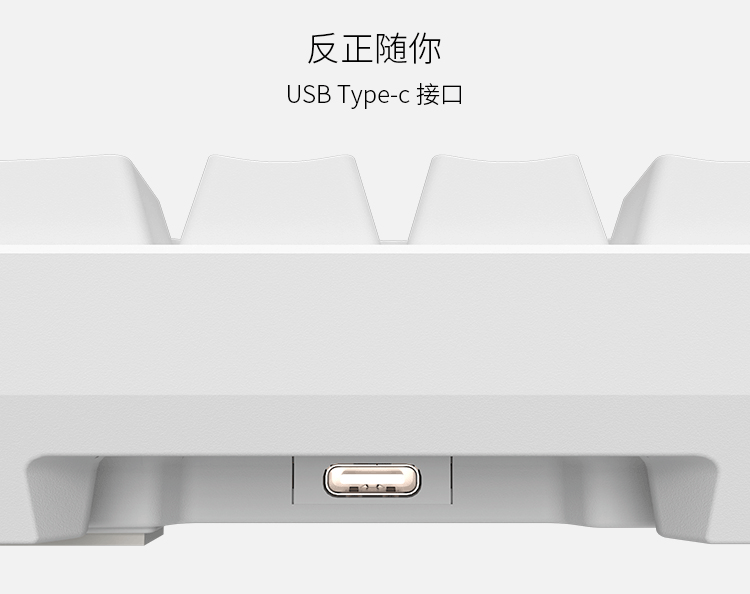

2. USB Type C connector
3. Hardware Programmable with Macro Capability

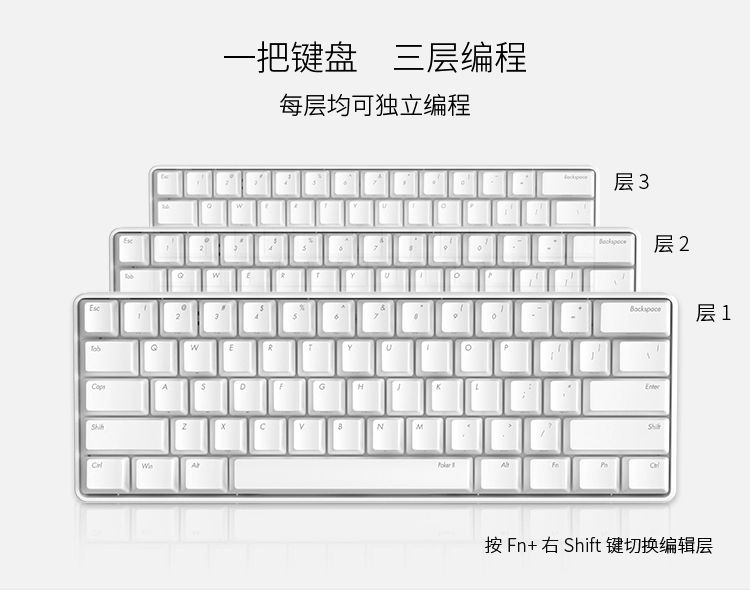

5. 3 programmable layers
6. DIP switches
7. Slim or low profile design

Specification
model name: New Poker II (White/Black)
Size: 60%
LED: NON-LED
Cherry MX: yes
KB Case color: White/black
keycap material: PBT
Print on the keycap: Laser Engraving
Keycap print position: Top and Side
Layout: ISO and ANSI
Discrete cable: USB Cable
NKRO: FULL
MEDIA KEY: YES
Primary interface: Type C
Windows compatible : Yes
Warranty: 12 months
Dimension: 290(L)X 120(W)X 28(H)mm
Weight: 545g
Place of origin : Made in China

Firmware upgrade

V1.03.00 Download
